G4015Z 19-3/16″ 3/4 HP Combination Lathe/Mill

G4015Z 19-3/16″ 3/4 HP Combination Lathe/Mill

by Prosperra
$2,095.00

Notify me when back in stock

G4015Z 3/4 HP Combo Lathe/Mill

This lathe/mill combo is not your basic benchtop machine!

The G4015Z is a precision metalworking lathe/mill. The lathe features a 16-1/2" swing, 19-3/16" between centers, and 6 speeds ranging from 185 to 1455 RPM.

The lathe cuts inch and metric threads, features 9 longitudinal feeds, and comes with a 4" three-jaw scroll chuck and 9-1/2" faceplate.

The compound rest features a built-in vise and the cross slide conveniently doubles as a mill table.

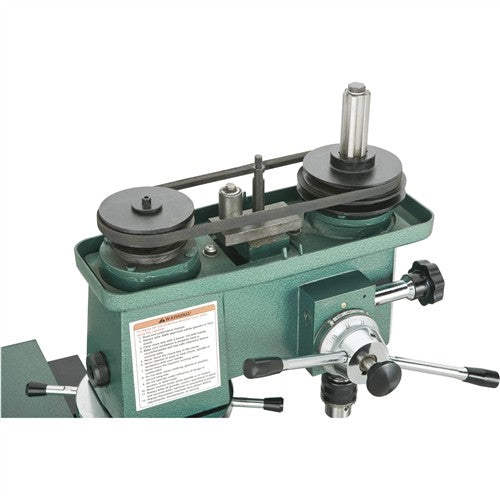

Meanwhile, the milling portion of the machine features a swing of 12", 14 speeds ranging from 117 to 1300 RPM, and a vise with a 2-3/4" capacity.

It sports an adjustable head, coarse and fine downfeed controls, and comes with a 1/2" drill chuck with arbor.

With the G4015Z, you get a lot of machine in a small package with all the features you need for just about any job!

Like all Grizzly machines, the G4015Z comes with a 1-year limited warranty.

The G4015Z manual was written by our U.S. based Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your combination lathe mill.

The Grizzly Technical Support team is also U.S.-based. Parts for the machine may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

LATHE SPECIFICATIONS:

  • Swing over bed: 16-1/2"
  • Swing over saddle: 11-1/2"
  • Distance between centers: 19-3/16"
  • Bed width: 5-1/2"
  • Spindle speeds: 7, 185–1455 RPM
  • Spindle bore: 0.787"; 20mm
  • Spindle taper: MT#3
  • Tailstock taper: MT#3
  • Tailstock quill travel: 1-1/2"
  • Cross slide travel: 4-1/2"
  • Compound travel: 3"
  • Maximum tool bit size: 1/2"
  • Leadscrew: 7/8"x 6 TPI
  • Longitudinal feeds: 8, 0.0020–0.0069 in/rev
  • Inch thread range: 27, 8–120 TPI
  • Metric thread range: 18, 0.2–3.0mm

MILL SPECIFICATIONS:

  • Swing: 12"
  • Distance from spindle to table: 10"
  • Distance from spindle to bed: 15-3/4"
  • Spindle speeds: 14, 117–1300 RPM
  • Spindle taper: MT#3
  • Spindle travel: 3-1/2"
  • Head vertical travel: 3"
  • Table dimensions: 6" W x 7-1/4" L x 1-1/2" H
  • T-slots: two at 7/16", 3.54" (90mm) on center
  • Maximum tool bit size: 1/2"
  • Drilling capacity: 1/2" (steel)

MAIN SPECIFICATIONS:

  • Motor: 3/4 HP, 110V, single-phase 8.7A
  • Dimensions: 42" W x 23" D x 35" H
  • Approximate shipping weight: 475 lbs.

FEATURES:

  • Cross slide doubles as a mill table
  • Coarse and fine mill spindle downfeed
  • Adjustable milling head
  • Built-in vise on compound rest
  • Cuts inch and metric threads

INCLUDES:

  • 1/2" Drill chuck with arbor
  • Two dead centers
  • 4" Three-jaw scroll chuck
  • 4-Way tool post
  • 9-1/2" Faceplate
  • 5" Backplate
  • MT#3 chuck arbor
Distance Spindle To Bed 15-3/4 in. 11-1/2 in. 14-1/2 in.
Distance Spindle To Center Line 9-3/4 in. 7-3/4 in. 6-1/8 in.
Distance Spindle To Vise 8-1/4 in. 8-9/16 in.
Distance Spindle To Work Table 10 in. 9-7/8 in. 12 in.
Mill Head Vertical Travel 3 in. 6-5/16 in.
Mill Swing 12 in. 13 in. 22 in.
Swing Over Bed 16-1/2 in. 8-1/4 in. 16-1/2 in.
Swing Over Saddle 11-1/2 in. 6-7/8 in. 11-1/2 in.
Swing Over Cross Slide 4-5/8 in.
Distance Between Centers 19-3/16 in. 15-3/4 in. 31 in.
Cross Slide Travel 4-1/2 in. 3 in. 7-1/2 in.
Spindle Bore 0.787 in. 0.787 in. (20mm) 1.107 in.
Spindle Taper MT#3 MT#3 MT#4
Spindle Type Intrinsic Back Plate
Maximum Tool Bit Size 1/2 in. 1/2 in. 1/2 in.
Carriage Travel 13 in. 15-3/4 in. 29 in.
Compound Travel 3 in. 2-1/8 in. 3 in.
Mill Spindle Travel 3-1/2 in. 1-3/4 in. 4-5/16 in.
Number of Longitudinal Feeds 8 2 24
Range of Longitudinal Feeds 0.002 – 0.0069 in./rev. 0.0037, 0.0068 in./rev. 0.002 – 0.014 in./rev.
Number of Cross Feeds
Range of Cross Feeds
Number of Inch Threads 27 15 44
Range of Inch Threads 8 – 120 TPI 9 – 44 TPI 4 – 120 TPI
Number of Metric Threads 18 12 14
Range of Metric Threads 0.2 – 3.0 mm 0.4 – 3.0 mm 0.75 – 6.0 mm
Drilling Capacity For Steel 1/2 in. 1/2 in. 1/2 in.
Drilling Capacity For Cast Iron 1/2 in. 1/2 in. 1/2 in.
Mill Taper MT#3 MT#2 MT#3
Tailstock Taper
Tailstock Quill Travel 1-1/2 in. 2 in. 2-1/2 in.
Tailstock Offset 1/2 in. 1/2 in.
Number Of Spindle Speeds 7 Variable 7
Spindle Speeds 185 – 1455 RPM 50 – 1000, 100 – 2000 RPM 175 – 1425 RPM
Number of Mill Drill Speeds 14 2 16
Mill Speed Range 117 – 1300 RPM 50 – 2000 RPM 120 – 3000 RPM
Table Size Length 7-1/4 in. 7-1/4 in. 18-3/4 in.
Table Size Width 6 in. 3-1/8 in. 6-1/4 in.
Table Size Thickness 1-1/2 in. 1-1/8 in. 1-1/4 in.
Bed Width 5-1/2 in. 4 in. 5-1/2 in.
Floor To Center Height 16 in. 16 in.
Drawbar Diameter 3/8 in. 3/8 in. 3/8 in.
Drawbar Length 10-3/4 in. 8-1/2 in. 13 in.
Drawbar Thread Pitch 16 16 TPI 16
Carriage Leadscrew Diameter 7/8 in. 5/8 in. 0.780 in.
Carriage Leadscrew Length 24 in. 23-3/4 in. 38 in.
Carriage Leadscrew TPI 6 12 TPI 6
Cross Slide Leadscrew Diameter 1/2 in. 3/8 in. 0.780 in.
Cross Slide Leadscrew Length 9 in. 9-1/2 in. 18 in.
Cross Slide Leadscrew TPI 10 16 TPI 8
Vise Jaw Opening 3-1/8 in. 3-1/8 in.
Bed Hardened & Precision-Ground Cast Iron Hardened and Precision-Ground Cast Iron Hardened & Precision-Ground Cast Iron
Body Cast Iron Cast Iron Cast Iron
Frame Cast Iron Cast Iron
Headstock Cast Iron Cast Iron Cast Iron
End Gears Steel Steel Steel
Stand
Paint Type/Finish Enamel Epoxy Enamel
Optional Stand No Model T26599 No
Coolant System No No No
Spindle Bearings
Spindle Length
Spindle Length with 3-Jaw Chuck
Spindle Length with 4-Jaw Chuck
Spindle Length with Faceplate
Tailstock Barrel Diameter
Mill Head Tilt (Left/Right) Left 45, Right 45 deg.
Number of T-Slots 2 2 2
T-Slot Size 7/16" 1/4 in. 7/16"
T-Slot Centers 90mm (3.54") 1-1/2 in. 90mm (3.54")
