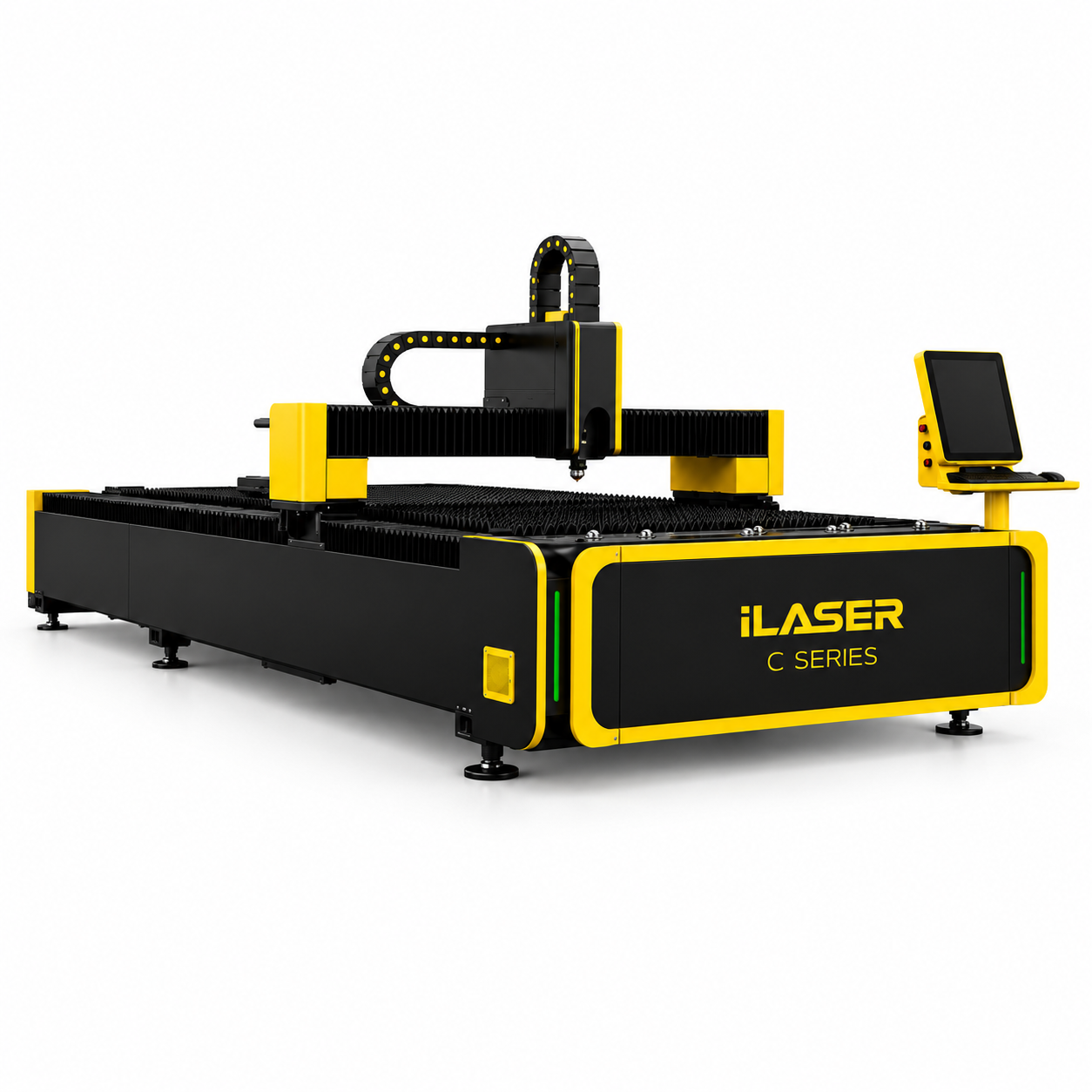

iLaser C Series Single Table Fibre Laser Cutting Machine
Pricing is tailored to your requirements. Request a quote and our team will contact you to discuss the right configuration.
VIEW iLASER PRODUCT CATALOGUE
The iLaser C Series is a single-table fibre laser cutting machine for sheet and plate processing. Its compact layout offers a practical option for workshops seeking laser cutting capability with a smaller machine footprint.
With laser power options from 3 kW to 12 kW and multiple working-area configurations, the C Series can be specified around your production requirements.
Key Features
- Single-table design for sheet and plate cutting.
- Laser power configurations from 3 kW to 12 kW.
- Standard working areas from 3000 × 1500 mm to 6000 × 2000 mm.
- Custom working-area options available on enquiry.
- Positioning speeds up to 120 m/min, depending on configuration.
- Maximum acceleration up to 1.5G, depending on configuration.
Technical Specifications
| Specification | 3000 × 1500 mm | 4000 × 2000 mm | 6000 × 2000 mm |
|---|---|---|---|
| Laser power options | 3–12 kW | 3–12 kW | 3–12 kW |
| X/Y positioning accuracy | 0.05 mm/m | 0.05 mm/m | 0.05 mm/m |
| X/Y repositioning accuracy | 0.02 mm | 0.02 mm | 0.02 mm |
| Maximum X/Y positioning speed | 120 m/min | 90 m/min | 80 m/min |
| Maximum X/Y acceleration | 1.5G | 1G | 1G |
Machine Selection and Australian Support
Prosperra can connect you with iLaser’s technical team to discuss machine configuration, installation, commissioning, operator training and ongoing support. The scope and cost of these services will be confirmed during quotation.
Request a Quote
Tell us your material, maximum cutting thickness, required sheet size and production needs. We’ll help arrange a quotation for a suitable configuration.
Specifications are provided as a guide. Final machine specifications, cutting capability, options and service inclusions must be confirmed with iLaser during quotation.
